VLX 100 Pivot Door

VLX 100 Pivot Door in Fort Worth, TX | Juniper Windows Fort Worth

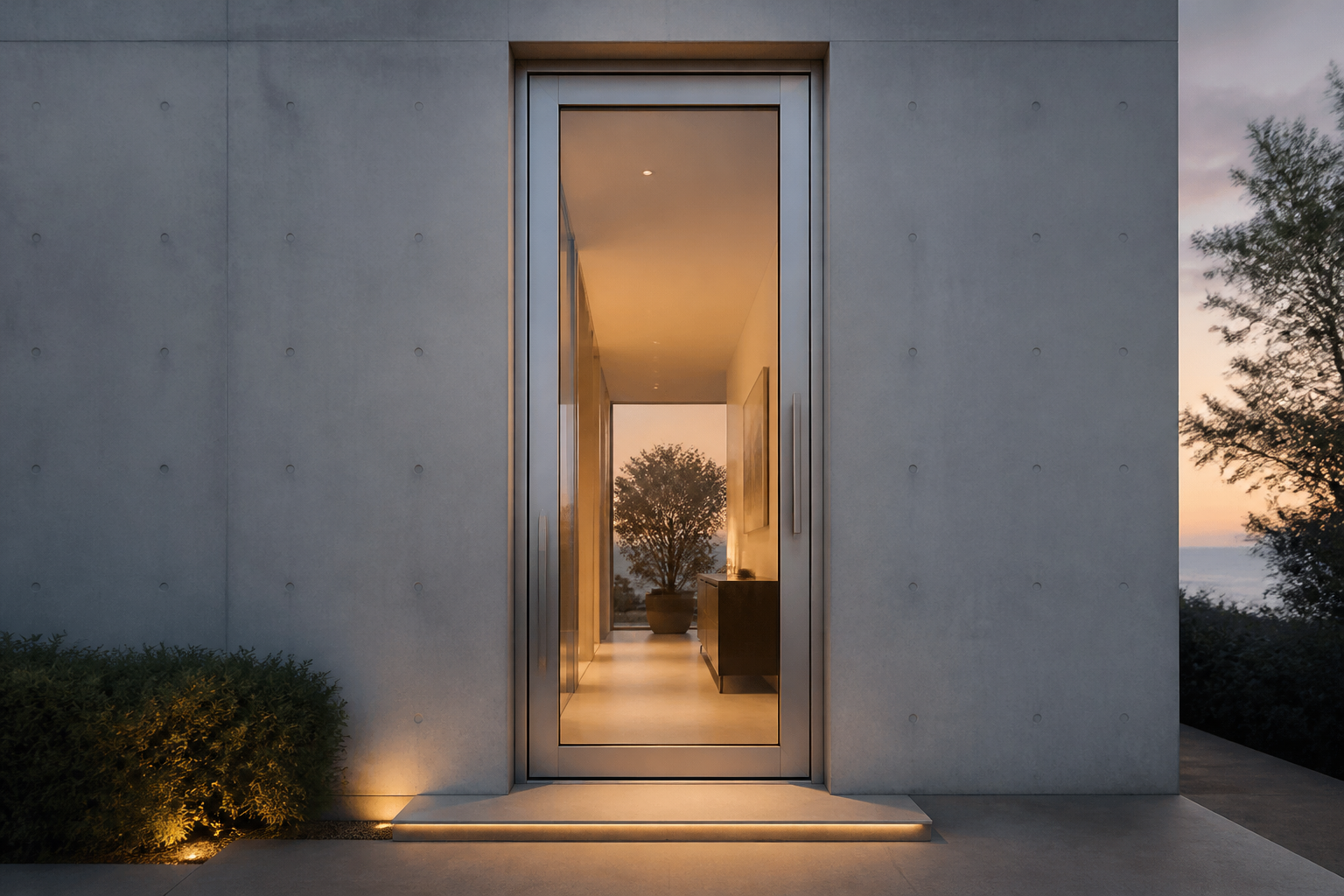

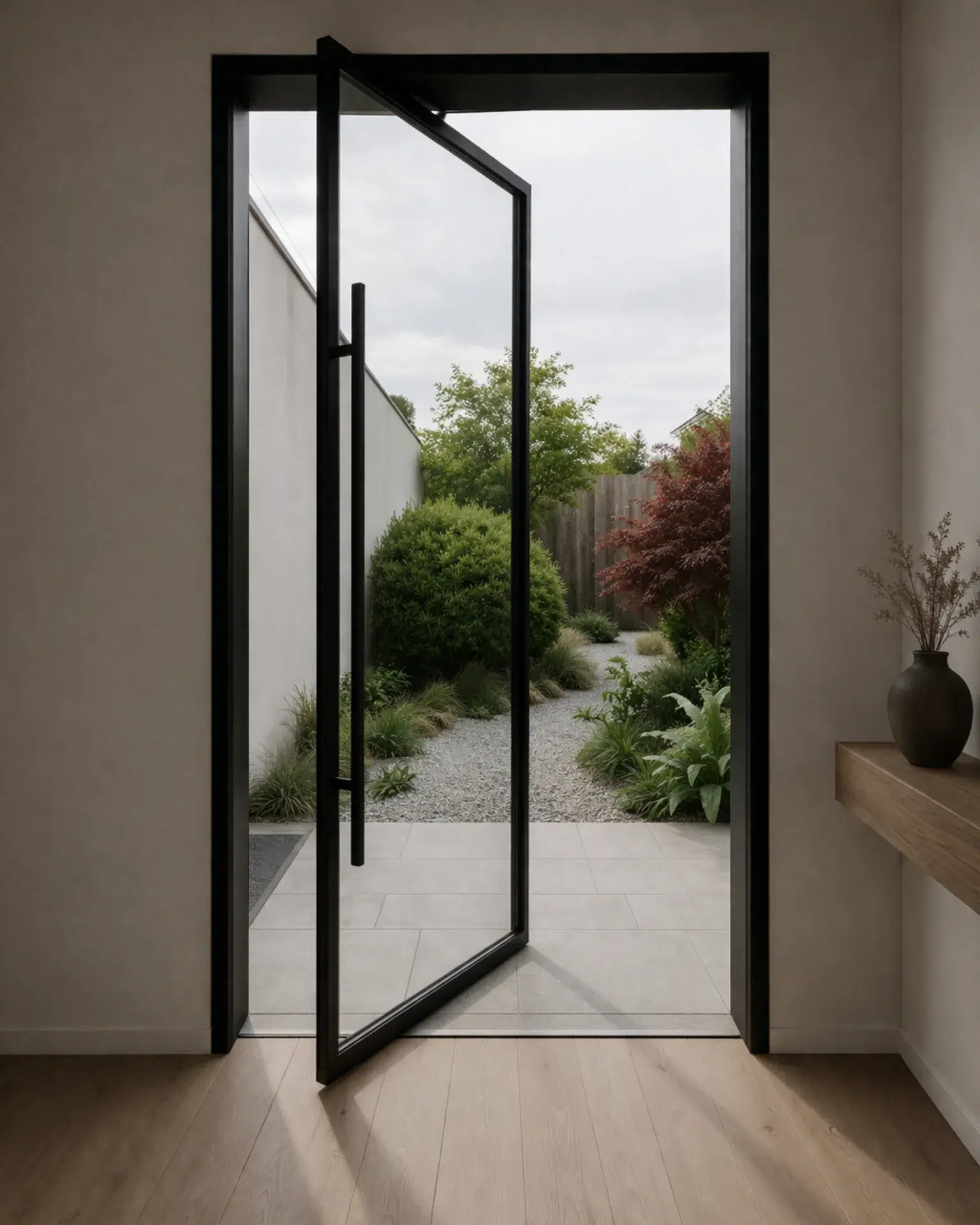

The VLX 100 Pivot Door is a heavy-duty aluminum entry system that rotates on a vertical center axis instead of traditional side hinges. It’s the door you see on modern custom homes across Fort Worth, from Westcliff to Montserrat, where oversized glass and clean sightlines matter. The frame is engineered around a 2.56-inch profile with 0.098-inch wall thickness, which gives it serious structural integrity. Juniper Windows Fort Worth is an authorized ViewLux installation partner, so you get factory-backed product support plus local installation crews who know how this door needs to be set. If you’re pricing one for a Fort Worth project, call (682) 354-9300 for a line-item quote.

Call (682) 354-9300

Product Overview – VLX 100 Pivot Door

The VLX 100 is ViewLux’s flagship pivot door, and it earns that position. This is not a door you hang and forget about. It’s a piece of architecture. The pivot hardware lets a panel up to 60 inches wide and 120 inches tall swing on a single vertical axis, which means you can go far bigger than any hinged door would allow. A pivot door distributes weight downward through the floor mechanism and upward through the header, so the frame isn’t fighting gravity the way a side-hung door does.

What actually sold most of our Fort Worth clients on the VLX 100 is the combination of the aluminum frame and the glass. Aluminum is dimensionally stable. It doesn’t swell in the humidity we get from spring through early fall, and it doesn’t warp when a north-facing entry sits in full sun through a Texas July. The glass can be tempered, laminated, or both, and that’s where the architectural statement happens. A clear tempered panel with a black aluminum frame looks like a gallery wall that happens to open.

We’ve installed VLX 100 doors in new builds near TCU and in mid-century remodels over in Ridglea Hills. The door works in both contexts because the frame profile is slim enough to feel contemporary without being industrial. It reads as intentional, not heavy.

One thing to understand: this door is a system, not just a slab. The pivot hardware, the threshold, the weatherstripping channel, and the glass all have to work together. That’s why ViewLux requires certified installers, and why Juniper Windows Fort Worth maintains that authorization for every installation we do in Tarrant County.

Technical Specifications

Here’s what the VLX 100 brings to the table on paper. These numbers matter when you’re comparing pivot doors, because small differences in frame depth and wall thickness translate to big differences in how the door feels when it closes.

• Frame wall thickness: 0.098 inches. This is a true commercial-grade extrusion wall, not a residential lightweight. It resists racking and holds its square over decades.
• Profile width: 2.56 inches. This creates the thermal break cavity and houses the multi-point lock hardware without bulking up the sightline.
• Maximum panel size: 60 inches wide by 120 inches tall. That’s a five-foot-wide door, which is simply not possible with conventional hinges.
• Glass options: Clear, frosted, obscure, Low-E, tempered, and laminated. Tempered is standard for safety glazing in door applications. Laminated adds impact resistance and sound damping.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. All finishes are applied at the extrusion level or anodized, not painted on top of a generic frame.
• Performance compliance: NFRC-rated thermal performance with thermal break, AAMA 2400/2410 installation standards, AAMA 812 perimeter sealant requirements.

Performance Features

Thermal Efficiency
Every VLX 100 frame carries a polyamide thermal break that separates the exterior and interior aluminum faces. That break is what lets the door earn legitimate NFRC energy ratings instead of just claiming insulation. In a Fort Worth summer, the interior face stays cool enough to touch, even when the exterior face has been baking in 100-degree sun for eight hours.

Acoustic Performance
If you live near I-30, the Chisholm Trail Parkway, or Camp Bowie traffic, sound control isn’t a luxury. Laminated glass on the VLX 100 cuts transmitted noise measurably compared to standard double-pane residential glass. We’ve had clients in Arlington Heights tell us the difference after install was the first thing they noticed, before they even admired the door itself.

Airtightness and Weather Seal
The door’s perimeter gasket system is designed to compress evenly when the panel seats against the frame. That’s a pivot door advantage: the leaf closes into the frame on all four sides, not just against a jamb on one side and a sweep on the bottom. AAMA 2400/2410 compliance during installation means that seal actually works, because a slightly out-of-plumb pivot door will gap at a corner no matter how good the gasket is.

Waterproofing
Fort Worth gets more than 36 inches of rain in an average year, and it often arrives in short, violent storms. The VLX 100 has a sill design that drains water outward before it can pool, and the frame channels direct any incidental moisture away from the interior threshold. Pair that with AAMA 812 low-expansion foam at every perimeter joint during installation, and you have a door that doesn’t leak in a North Texas downpour.

Wind Resistance
The pivot mechanism and multi-point hardware are wind-load rated for the design pressures required in Tarrant County. We use the same panel and frame engineering for doors facing open exposure in places like Benbrook and Crowley, where spring storms hit without much windbreak. The door doesn’t whistle, flex, or work its gaskets loose when pressure fluctuates.

Security and Hardware
The VLX 100 ships with a multi-point locking rail as part of the frame, not as an add-on. That means the panel locks at the top, bottom, and center simultaneously. Laminated glass options add a second layer: if the outer pane breaks, the inner PVB interlayer holds the panel together, which keeps the opening closed. For a Fort Worth homeowner, that’s a meaningful difference from a standard tempered patio door.

Color and Glass Options

The six ViewLux finishes on the VLX 100 cover most of what we see in Fort Worth architecture. Premium Black is the most requested finish right now in neighborhoods like Fairmount and Magnolia Village, where modern transitional exteriors dominate. Pure White suits the farmhouse-modern builds popping up north of Loop 820. Anodized Silver has a commercial clarity that works well on offices and contemporary homes, while Bronze and Champagne blend with the limestone and warm brick we see throughout older Fort Worth neighborhoods like Berkeley Place and Ryan Place. Teak Wood is a wood-grain finish over aluminum, so it gives you the warmth of a timber entry without the maintenance that real wood demands in our climate.

On glass, the decision usually comes down to privacy and light. Clear tempered glass maximizes the architectural effect. Frosted or obscure glass gives you privacy on street-facing entries in tighter lots like those in Mistletoe Heights. Low-E is the energy-performance choice, and it’s worth it in a west-facing Fort Worth entry. Laminated glass is the upgrade we recommend most often for sound and security, and it’s the only option we’d spec for a door that faces a busy street or a storm exposure.

Installation by Juniper Windows Fort Worth in Fort Worth

Here’s the honest part: a pivot door is only as good as the crew that sets it. We’ve seen what happens when a general contractor hands this door to a framing crew that’s never touched one. It’s out of level by a quarter inch, the pivot binds, the gaskets don’t seat, and within two seasons the door leaks and the homeowner is fighting a warranty claim that the manufacturer denies because the install wasn’t certified.

Our process starts before the door ever arrives on site. We inspect the rough opening, confirm the header and floor structure will support the pivot loads, and verify the substrate is ready for a full-perimeter seal. When the VLX 100 arrives from ViewLux, we set the frame level, plumb, and square using laser references. We shim and anchor per the manufacturer’s engineering, not by feel. Then we run AAMA 812 low-expansion foam at every perimeter joint, install interior and exterior backer rod and sealant per AAMA 2400/2410, and finish with a water test on the sill and threshold before we call the job done.

Fort Worth building conditions matter here. The clay soil we build on moves. A door mounted to a slab or framed opening that settles unevenly needs to be set with that in mind. We account for it during the install and recommend a settle-break inspection within the first year on new construction. That’s local knowledge you don’t get from a generic installer.

Because Juniper Windows Fort Worth is an authorized ViewLux partner, every installation we perform keeps the manufacturer’s warranty intact. That matters. If an unauthorized installer touches the door, the warranty is void before you’ve even hung a key on it.

Frequently Asked Questions – VLX 100 Pivot Door

Get a Quote – VLX 100 Pivot Door in Fort Worth

If you’re considering a VLX 100 for your Fort Worth home, start with a real number, not a website price range. Call Juniper Windows Fort Worth at (682) 354-9300 to schedule a free on-site measurement. We’ll walk the opening, talk through glass and finish options, and give you a written quote with no change orders and no surprises. Whether you’re building new in Walsh Ranch or renovating a classic in Berkeley Place, we’ll get your pivot door done right.

Written by the team at Juniper Windows Fort Worth, serving Fort Worth, TX as an authorized ViewLux installation partner since day one.
