VLX 100 Double Swing / French Door

VLX 100 Double Swing / French Door in Fort Worth, TX | Juniper Windows Fort Worth

The VLX 100 Double Swing / French Door is a paired aluminum door system built for Fort Worth homeowners who want wide, symmetrical openings without the sag, warping, or swelling you get from wood or vinyl. We install these doors across Tarrant County, and the feedback is consistent: the flush threshold means you walk through without catching a toe, the multi-point lock hardware gives you a bank-vault solid feel when you close up at night, and the sightlines stay clean on both panels. As an authorized ViewLux installation partner, Juniper Windows Fort Worth is one of the few companies in the area certified to install this series with full warranty protection. Call (682) 354-9300 to schedule a free measurement.

Call (682) 354-9300

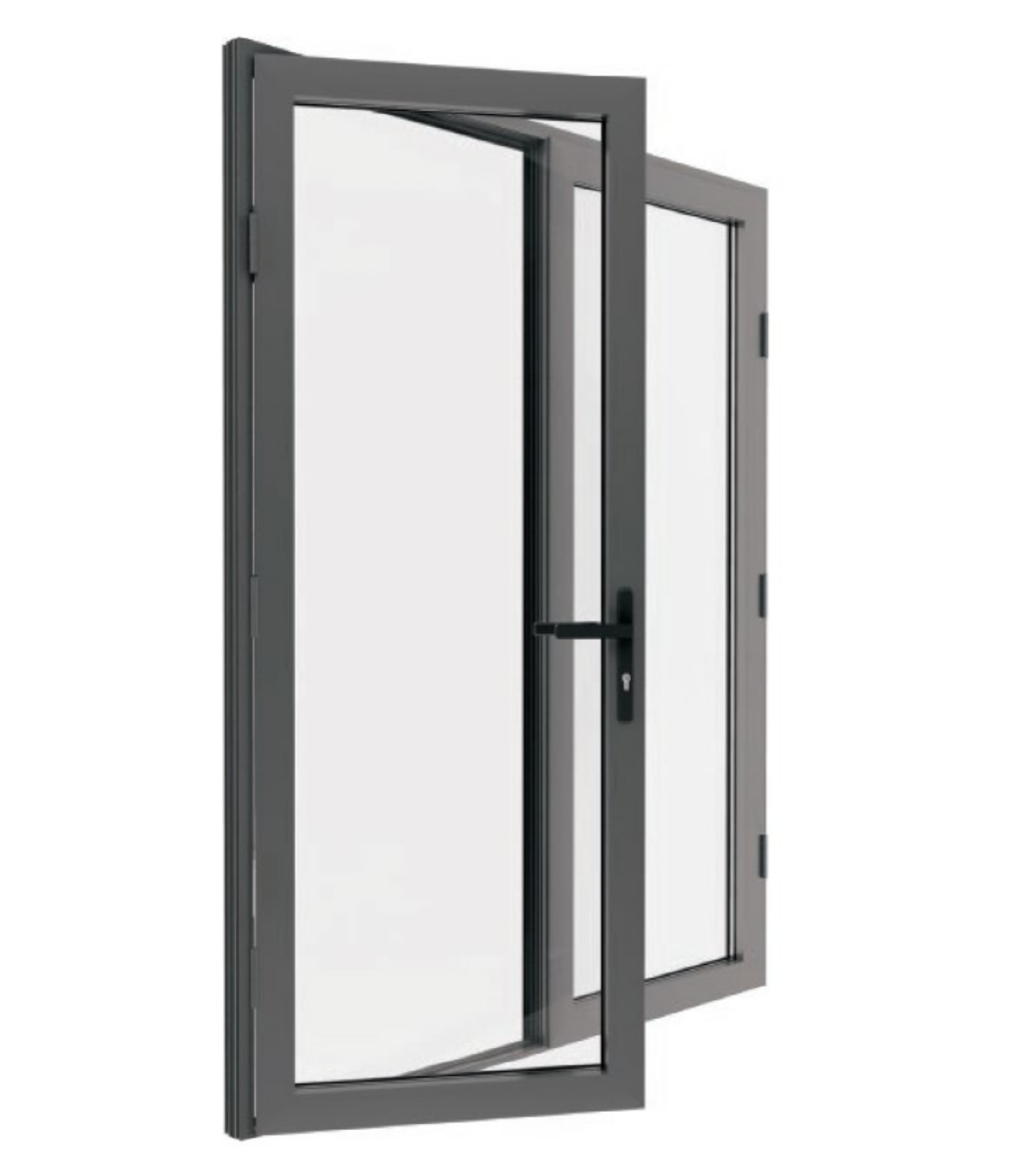

Product Overview – VLX 100 Double Swing / French Door

Most French doors in Fort Worth are either wood, which moves with every humidity swing, or vinyl, which flexes and fades. The VLX 100 goes the other direction: extruded aluminum with a 2.56-inch profile depth and a frame wall thickness of 0.098 inches. That’s a substantial frame, and it’s why the doors open and close the same way ten years in as they do on day one.

The design is deliberately symmetrical. Both panels match in width and profile, so the door reads as one clean architectural element rather than a primary door with a tagalong. The flush threshold is a standout feature for Fort Worth ranches and newer builds alike: no raised sill to step over, which matters when you’re carrying a plate of brisket out to the patio or pushing a stroller through. It also means wheelchairs and walkers clear the opening without a ramp.

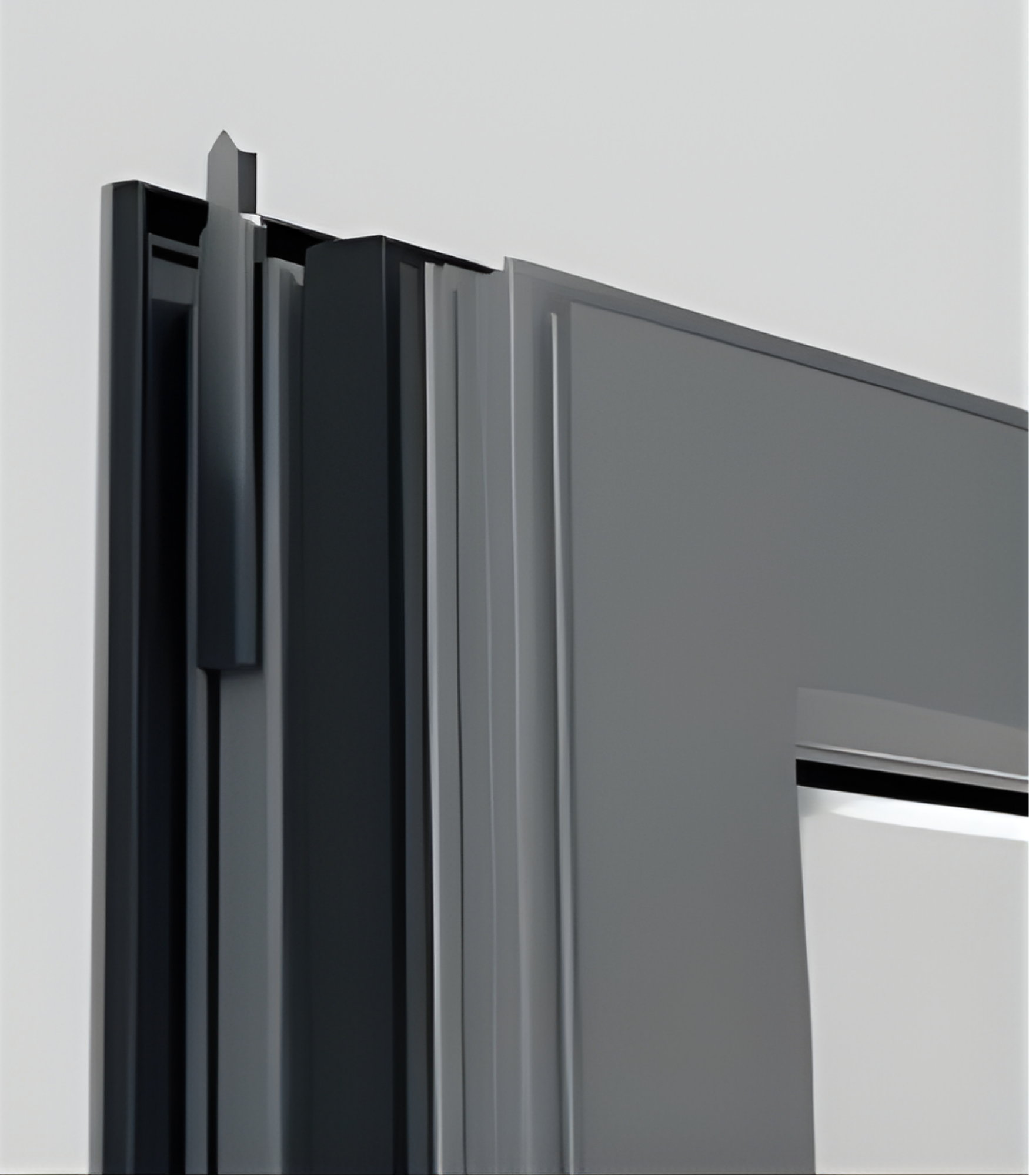

The multi-point lock hardware runs the full height of the active panel, engaging at top, center, and bottom. That spreads the locking force across the frame instead of concentrating it at one deadbolt, which makes the door harder to pry and keeps the panels seated tight against the weatherstripping. People choose the VLX 100 because they want a 96-inch-wide opening that doesn’t leak air, doesn’t rattle in a north Texas windstorm, and doesn’t look like a patio slider. It’s a front-of-house door as much as it is a backyard door.

Technical Specifications

Here’s the detail set for the VLX 100 Double Swing / French Door as we order and install it in Fort Worth:

• Frame construction: Extruded aluminum, 2.56-inch profile width, 0.098-inch wall thickness
• Maximum span: Up to 96 inches wide total opening (paired configuration)
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable Screen, or None
• Performance ratings: NFRC-rated thermal performance via thermal break technology; AAMA 2400/2410 installation standard; AAMA 812 low-expansion foam at all perimeter joints
• Hardware: Multi-point lock, full-height engagement

The 0.098-inch wall is thicker than what you’ll find on economy aluminum doors. That wall thickness, combined with the 2.56-inch profile, is what gives the VLX 100 its structural rigidity on 8-foot-wide openings. The panels don’t twist when you adjust the hinges, and the frame doesn’t oil-can in the summer heat.

Performance Features

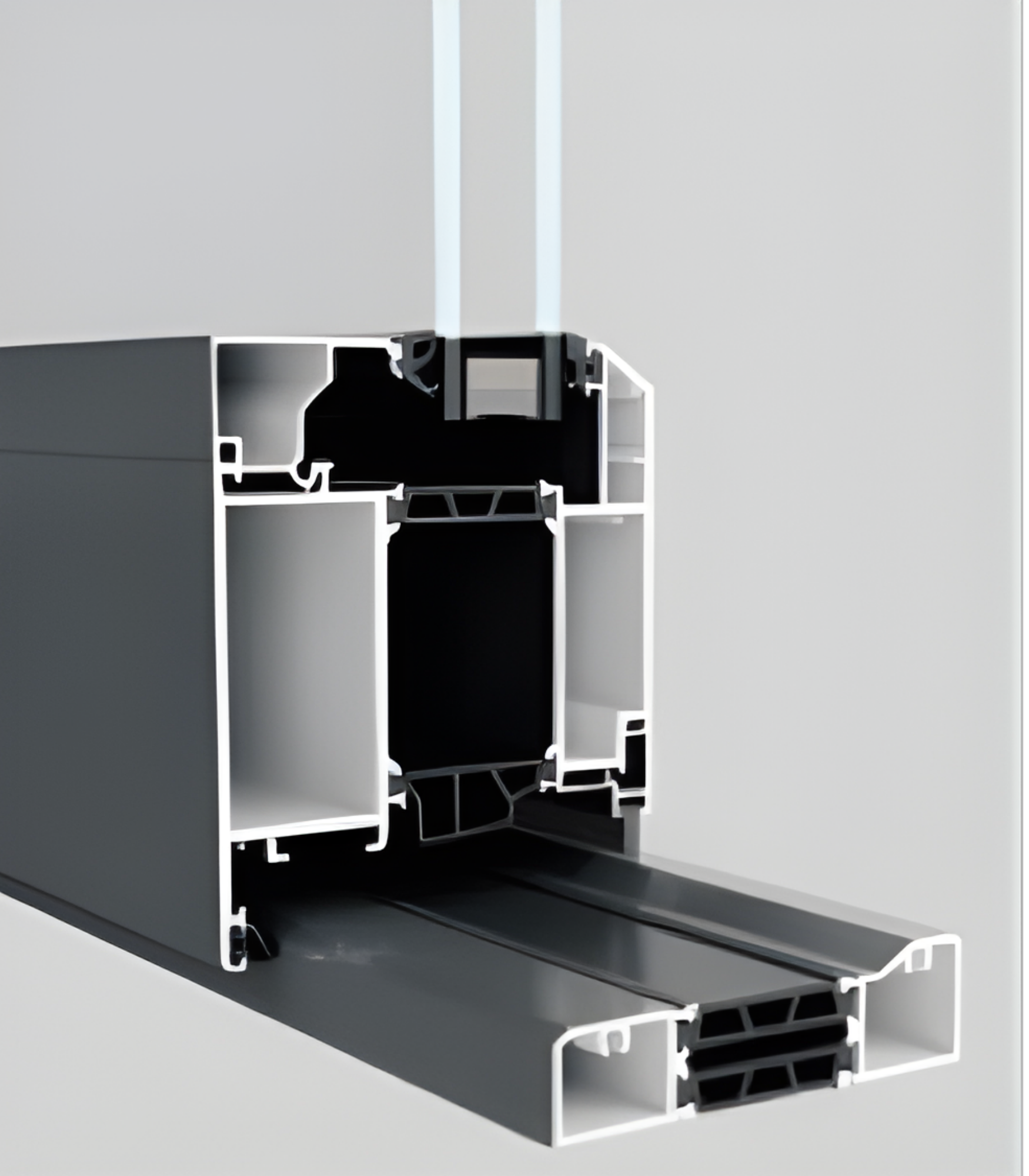

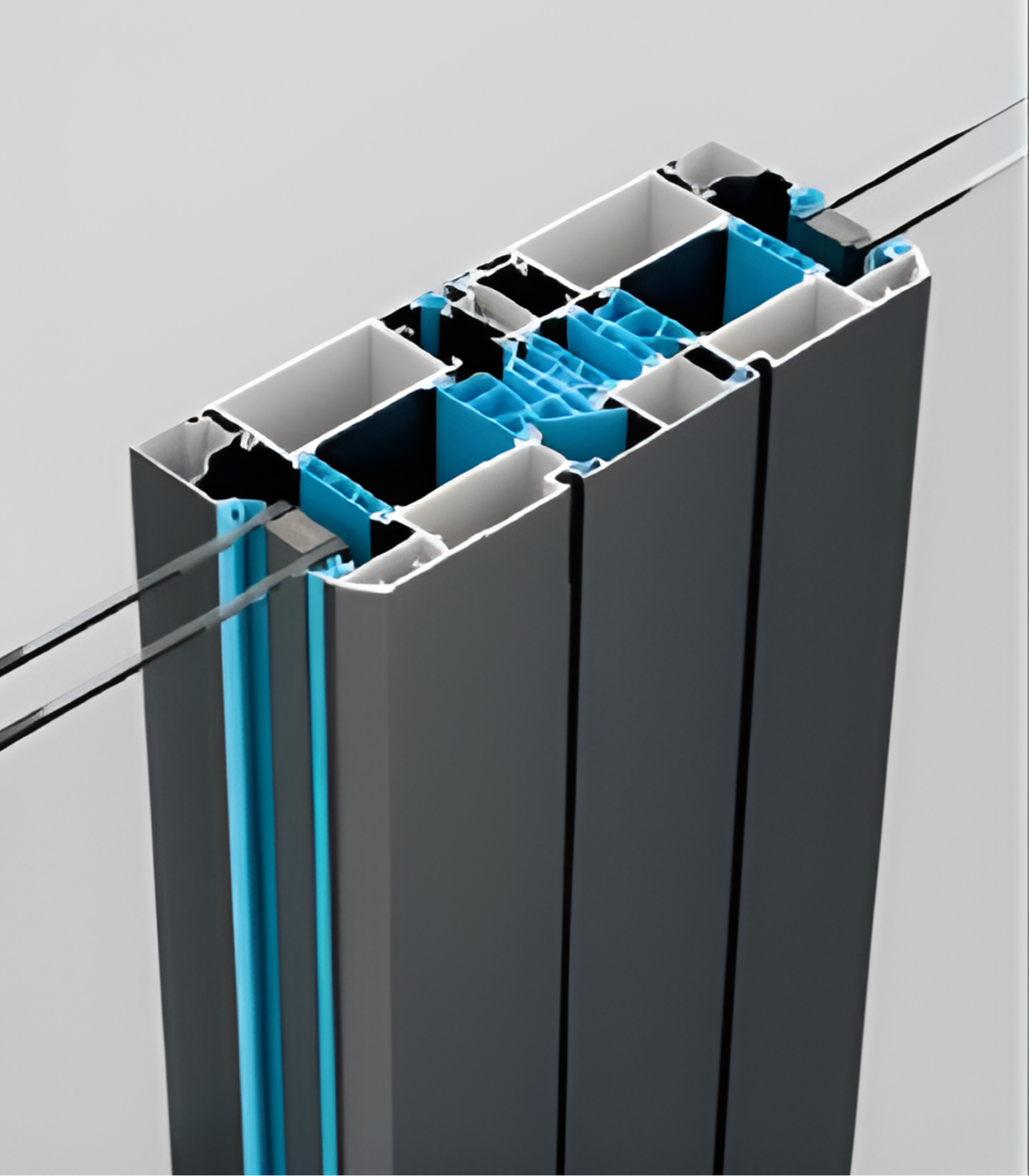

Thermal Efficiency – The VLX 100 uses a thermal break: a non-conductive barrier between the interior and exterior aluminum faces. Without it, aluminum frames conduct Fort Worth’s July heat straight into your living room. With it, the frame performs well enough to carry NFRC energy ratings, and pairing it with Low-E or laminated glass keeps your south-facing openings from acting like a radiator.

Acoustic Performance – Fort Worth’s north side gets railroad noise, and homes near I-35W or Loop 820 live with constant traffic hum. Laminated glass is the upgrade we recommend for any opening facing a busy corridor. The vinyl interlayer inside the laminate dampens sound transmission noticeably better than standard clear glass, and the tight perimeter seal on the VLX 100 frame means less noise leaks around the panel edges.

Airtightness & Weather Seal – Air leakage is where French doors usually fail. The VLX 100’s full-height weatherstripping, combined with the multi-point locking system pulling the panels square into the frame, keeps the seal compressed evenly. That matters in Fort Worth because we get real winter mornings in the 20s and real summer afternoons at 100-plus. A tight seal means your HVAC isn’t fighting a drafty 8-foot wide hole in the wall.

Waterproofing – Here’s where installation standards matter as much as the product. We seal every perimeter joint with AAMA 812 low-expansion foam before the exterior trim goes on, and we follow AAMA 2400/2410 installation protocols on every VLX 100 we hang in Fort Worth. The result is a door opening that shrugs off the horizontal rain we get during spring storms instead of wicking water into the subfloor.

Wind Resistance – North Texas is wind country. Fort Worth sits in a wind zone where door panels need to resist both direct pressure and negative suction on the leeward side. The VLX 100’s aluminum frame and multi-point locking engagement give it real structural resistance in paired 96-inch configurations, which is also why ViewLux wind-load rates this series for our local climate requirements.

Security & Hardware – The multi-point lock on the VLX 100 is the security upgrade most people feel the first time they shut it. Three locking points drive into the frame with one motion of the handle. That’s steel-to-aluminum engagement at top, bottom, and center, not a single little latch. If security is the priority, we can also spec impact-resistant laminated glass, which holds together even if someone tries to break through it.

Color & Glass Options

The VLX 100 comes in six finishes, and they cover the full architectural spectrum you see across Fort Worth neighborhoods. Premium Black is the current favorite for modern and transitional builds, especially on light brick or stucco. It’s a bold, crisp line against the house. Pure White suits traditional Fort Worth homes with painted trim; it disappears into the facade and lets the glass do the work. Anodized Silver is a clean, industrial look that pairs well with gray stone or metal roofs. Bronze is the quiet workhorse: darker than silver but softer than black, and it hides dust better than any of the lighter finishes. Champagne is warmer, almost a honey-tinted metallic, and it reads upscale on Mediterranean or Tuscan-style homes. Teak Wood gives you the warmth of wood grain with none of the maintenance, which is why we recommend it for mid-century and ranch-style homes in areas like Ridglea or Wedgwood where original wood details are part of the character.

For glass, Clear is the default for maximum light. Frosted and Obscure are privacy options, useful for a bedroom leading to a patio or a side entry door visible from the street. Low-E is our standard recommendation for any west-facing or south-facing opening in Fort Worth: it cuts heat gain without noticeably dimming the room. Tempered glass is safety glass, required by code on certain door configurations and recommended for homes with active kids. Laminated is the upgrade for both impact resistance and noise reduction, and it’s what we recommend for homes along major thoroughfares or in hail-prone parts of Tarrant County.

Installation by Juniper Windows Fort Worth in Fort Worth

A French door is only as good as the opening it’s set in, and in Fort Worth, an improper install fails fast. The clay soil here moves. Even with pier-and-beam or slab foundations, any 96-inch-wide opening is going to see some settlement over time. If the frame isn’t set level, plumb, and square, the panels bind, the weatherstripping gaps, and the door that felt great at install starts sticking by the following spring.

Our process starts before we touch the opening. We inspect the rough opening, the header, the subfloor, and the existing waterproofing. We look at how water has been moving around the opening because that tells us what the new door has to manage. Then we set the frame dead level and square, shimming and anchoring per AAMA 2400/2410 standards. We seal the full perimeter joint with AAMA 812 low-expansion foam, which fills gaps completely without bowing the frame. After the exterior trim is on, we water-test the opening before we ever hang the panels. Then we install, adjust, and walk you through the lock and threshold operation.

One thing we tell every Fort Worth customer: a botched installation voids the manufacturer warranty. ViewLux’s warranty covers defects in materials and workmanship, not failures caused by a crooked frame, missing flashing, or foam skips. That’s why factory authorization matters, and why we handle the install from measurement to final adjustment. We’re local. We’re not a subcontractor from Dallas. If something’s off, it’s our door, our install, our call to fix.

Frequently Asked Questions – VLX 100 Double Swing / French Door

Get a Quote – VLX 100 Double Swing / French Door in Fort Worth

If you’re planning a double door opening in Fort Worth, start with a real measurement and a real price. We’ll come out, check the opening, talk through finishes and glass, and give you a written line-item quote. No pressure, no change orders. Call (682) 354-9300 today to schedule your free on-site measurement.

Written by the team at Juniper Windows Fort Worth, serving Fort Worth, TX and surrounding Tarrant County communities.
