VLX 100 Arched / Custom Door

VLX 100 Arched / Custom Door in Fort Worth, TX | Juniper Windows Fort Worth

An arched entry door changes how a home meets the street. The VLX 100 Arched / Custom Door from ViewLux is a CNC-bent aluminum entryway, built to order for the exact radius and opening dimensions of your Fort Worth home. Juniper Windows Fort Worth is an authorized ViewLux installation partner, which means we sell the product, install it to AAMA 2400/2410 standards, and stand behind the finished opening. You don’t split responsibility between a retailer and a separate installer. One call handles the whole project from measurement to final cleanup. Call (682) 354-9300 to talk through options and schedule a free on-site measurement.

Call (682) 354-9300

Product Overview – VLX 100 Arched / Custom Door

The VLX 100 exists because standard rectangular doors don’t solve every architectural problem. Fort Worth homes span a wide range of styles: 1920s bungalows in Fairmount with rounded-top openings, Mediterranean-inspired entries in Tanglewood, contemporary builds in Walsh with clean parabolic curves. A custom arched door needs to match the existing radius exactly, or it looks wrong. The VLX 100 is fabricated from aluminum bent on CNC-controlled equipment, so the curve is consistent and the frame joins are tight. This isn’t a stock door forced into an arched rough opening. It’s an arched door made for your opening.

The frame profile measures 2.56 inches wide with a 0.098-inch wall thickness. That gives the door real structural stiffness without the bulk of older commercial aluminum systems. The result is a slim sightline that keeps the emphasis on the arch itself. Homeowners choose this series when they want the architectural statement of a curved entry but don’t want to sacrifice modern thermal performance or deal with the maintenance of painted wood. ViewLux builds the door. Juniper Windows Fort Worth handles specification, order placement, and certified installation across the Fort Worth area.

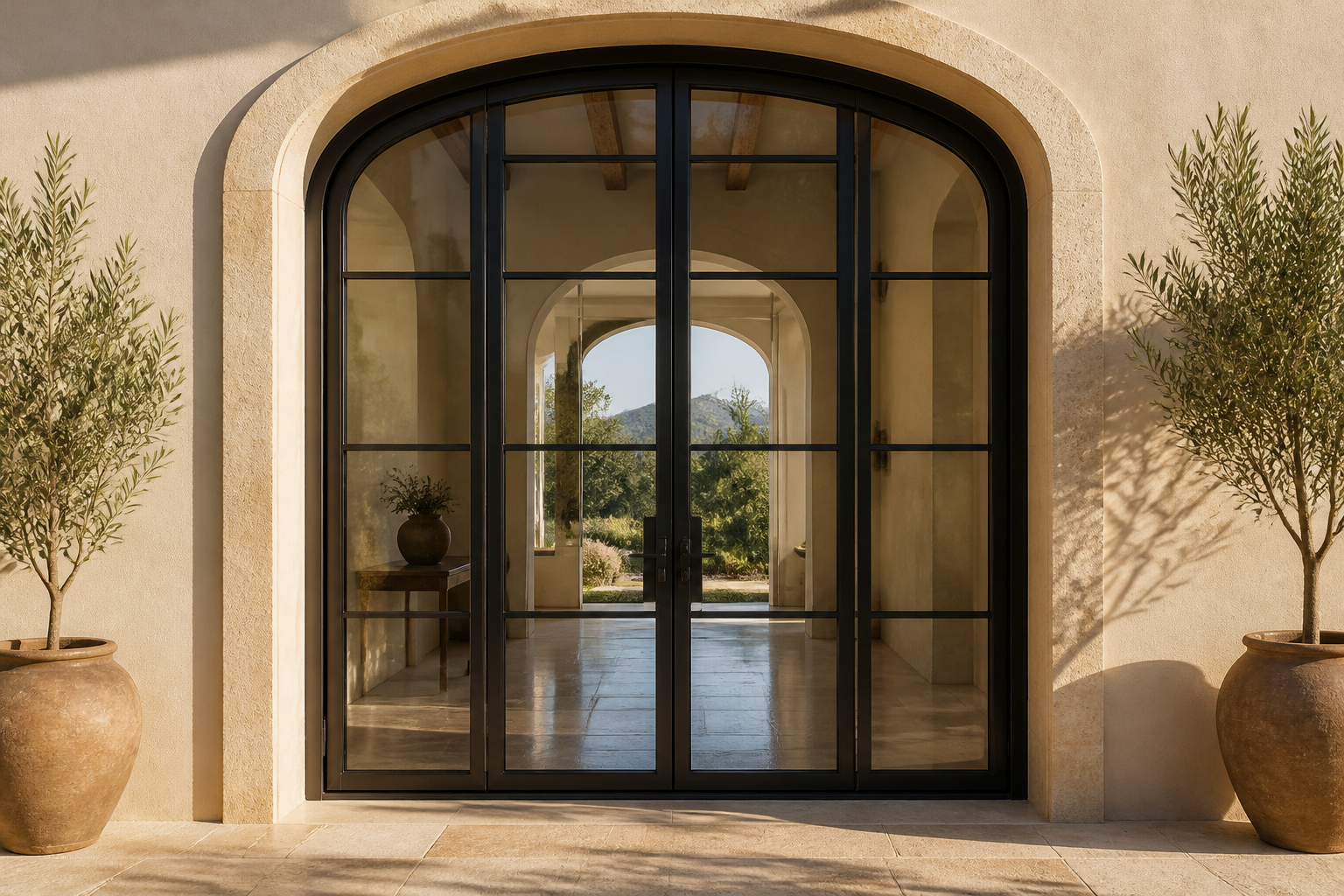

Where does it fit? A freestanding front entry, a double-door config with a matching arched transom, or a rear patio door that opens to a covered outdoor kitchen. Because every unit is custom fabricated, the span and radius are not limited by a stock size chart. We’ve installed VLX 100 arches on new construction in north Fort Worth and on renovation projects where the homeowner wanted to restore the original character of an older entry. In both cases, the door becomes the first thing people notice. Call (682) 354-9300 if you’re weighing this product against a custom wood alternative.

Technical Specifications

• Frame material: Extruded architectural-grade aluminum, CNC-bent to the specified arch radius
• Wall thickness: 0.098 in., delivering rigidity without added visual bulk
• Profile width: 2.56 in., slim modern sightline
• Maximum span: Custom fabricated to order – no stock-size ceiling
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Performance building blocks: Thermal break technology, NFRC-rated energy data, AAMA 2400/2410-compliant installation, AAMA 812 low-expansion perimeter sealant
• Extended protection: Impact-resistant laminated glass available for wind-borne debris zones

These are the numbers and standards that matter when you’re comparing a genuine ViewLux system installed by Juniper Windows Fort Worth against other aluminum doors in Fort Worth.

Performance Features

Thermal Efficiency – The VLX 100 uses thermal break technology that separates the interior and exterior aluminum faces. That break is what keeps Fort Worth summer heat from conducting straight through the frame. Pair it with Low-E glass and you get NFRC-rated performance that holds up in August without forcing your AC to run harder than it should.

Acoustic Performance – Fort Worth has real noise: I-30 traffic, Alliance Airport flight paths, train horns near the Near Southside. Laminated glass reduces sound transmission noticeably compared to standard single-pane units. For homes on busier streets, we recommend combining laminated glass with a tight perimeter air seal for the best sound control.

Airtightness & Weather Seal – Every perimeter joint is sealed with AAMA 812-compliant low-expansion foam, then capped and detailed. Airtightness ratings matter in North Texas because wind-driven air leakage is a major source of energy loss and dust entry. Our installation crews seal every arch joint, not just the flat runs.

Waterproofing – Arched openings are more prone to water issues than rectangles if the flashing isn’t right. We install per AAMA 2400/2410 guidelines, which require positive drainage at the sill and continuous weather barrier integration up the arch legs. Then we water-test the opening. The goal is simple: no water, no mist, no stained drywall after a Fort Worth thunderstorm.

Wind Resistance – Fort Worth sits in a wind zone that demands doors hold their rating during straight-line storms and spring severe weather. The VLX 100 is wind-load rated for our local climate requirements. For homes in impact zones or those wanting added protection, laminated impact-resistant glass is available on this series.

Security & Hardware – The frame is 0.098-inch aluminum, which is more than adequate for residential security when paired with a proper multi-point lock. We always confirm the door is set plumb and square so the locking hardware engages fully. A slightly racked door is a security risk. Ours aren’t.

Color & Glass Options

The VLX 100 ships in six finishes. Premium Black is the most requested for modern and transitional Fort Worth homes: it reads as crisp and intentional against brick or stucco. Pure White suits traditional or cottage-style entries and holds up well without yellowing. Anodized Silver is the raw aluminum look, popular on contemporary builds. Bronze works beautifully on older homes with warmer masonry tones, especially in Fairmount or Ryan Place where period character matters. Champagne is a softer metallic that reads as upscale without being shiny. Teak Wood is a textured wood-grain finish for homeowners who want the warmth of wood with aluminum maintenance.

On the glass side, Clear maximizes visible light and is the standard choice. Frosted and Obscure are for privacy: think front doors where you want daylight without passersby seeing your entry hall. Low-E is the energy upgrade we recommend on every Fort Worth install. Tempered is available for safety glazing requirements. Laminated adds impact resistance and noise reduction, and it’s the correct choice for high-wind exposure or security-focused buyers.

Installation by Juniper Windows Fort Worth in Fort Worth

An arched aluminum door is only as good as its installation. Juniper Windows Fort Worth has been installing doors and windows in the Fort Worth market long enough to know that the difference between a 15-year door and a 5-year door usually comes down to what happens at the rough opening.

Every project starts with a pre-install inspection. We check the rough opening dimensions against the fabricated unit, verify the substrate condition on all four sides of the arch, and confirm the sill is ready for positive drainage. If the opening isn’t right, we stop and fix it before the door goes in. That’s the point of an inspection.

During installation, we set the frame level, plumb, and square. On an arched door, this matters even more than a rectangle: any rack in the frame telegraphs through the arch and the panel won’t seat correctly. We work in small adjustments until the reveal is consistent around the full arc. The door is then shimmed and fastened, and every perimeter joint is sealed with AAMA 812 low-expansion foam before the exterior flashing goes on.

Our crews install per AAMA 2400/2410 standards. That’s the installation standard the manufacturer warranty is built around. Improper installation is the number one reason door warranties get denied. A misaligned frame, missing flashing, or skipped foam seal all void coverage. When Juniper Windows Fort Worth installs your VLX 100, the installation is warranty-safe and the work is documented.

Fort Worth adds a couple of specific considerations. Summer highs push thermal movement on aluminum, so we leave proper expansion clearance at the frame-to-structure joints. Spring severe weather demands real flashing details, not just caulk lines. And many neighborhoods with historic overlay requirements in areas like Fairmount need an installation approach that preserves the original arched opening without disturbing adjacent masonry. We’ve done enough Fort Worth installs to anticipate these things before they become problems.

After the door is set, we run a water test on the exterior, operate the panel several times, and confirm the hardware engages. Cleanup includes removal of all packaging, foam scrap, and old-unit debris. You’re left with a finished door, nothing else.

Frequently Asked Questions – VLX 100 Arched / Custom Door

What is the lead time for the VLX 100 Arched / Custom Door?
Lead time on the VLX 100 Arched / Custom Door typically runs 6 to 10 weeks from final field measurement to delivery at our Fort Worth shop, depending on finish and glass selection. Custom fabrication to order takes longer than a stock door, and it’s worth the wait. Call (682) 354-9300 for current lead times on your specified configuration.

Does the VLX 100 qualify for energy tax credits?
The VLX 100 can qualify for federal energy tax credits when configured with Low-E glass and documented NFRC-rated performance that meets current program thresholds. Qualification depends on the glass package, not the frame alone. We’ll provide the NFRC documentation you need to file. Call (682) 354-9300 and we’ll spec a qualifying package.

What warranty comes with the Arched / Custom Door?
The VLX 100 carries a manufacturer warranty on the frame, finish, and glass package. Coverage terms vary by component and finish selection, so we review the specifics line by line before you order. The critical point: installation must be performed to AAMA standards by an authorized partner like Juniper Windows Fort Worth for warranty coverage to apply. Call (682) 354-9300 for full warranty details on your spec.

Can I customize the size?
Yes. The VLX 100 is custom fabricated to order, which means width, height, arch radius, and configuration are all built to your opening. There’s no stock-size limitation. We measure your Fort Worth home’s arched opening precisely and the door is fabricated against those dimensions. Call (682) 354-9300 to schedule a free measurement.

How do I maintain aluminum frames?
Wash the frame with mild soap and water every few months and inspect the weep holes and weatherstripping annually. Fort Worth hard water dries with a film, so wiping down after washing prevents buildup. No painting, no sealing, no rust. Aluminum is the lowest-maintenance door material available. Call (682) 354-9300 if you ever need a service visit.

Get a Quote – VLX 100 Arched / Custom Door in Fort Worth

If you want a curved architectural entry that lasts, the VLX 100 Arched / Custom Door installed by Juniper Windows Fort Worth is the right product. We’ll measure your opening, spec the door, quote the full project, and install it to manufacturer warranty standards. Call (682) 354-9300 to schedule a free on-site measurement and get started.

Written by the team at Juniper Windows Fort Worth, serving Fort Worth and surrounding neighborhoods with ViewLux door and window installations.
